Fluoropolymer Coating & Lining

We focus on fluoropolymer coating and lining services that ensure high purity, chemical resistance, non-stick, easy cleaning, and anti-static performance. These solutions are tailored for demanding environments in industries such as semiconductors manufacturing, pharmaceuticals, petrochemicals, and food processing. Over the past two decades, the company has supported more than 5,800 clients by offering coating and lining processes based on advanced fluoropolymer materials. These technologies are designed to handle extreme temperatures (-190°C to 260°C) and vacuum applications, providing stable performance in harsh operating conditions. We offer a range of application methods tailored to different fluoropolymer materials, helping clients address challenges such as:

  • High procurement and maintenance costs of alloy systems
  • Enamel layer failure in glass-lined equipment
  • Incompatibility with strong acids, alkalis, fluorine, or iodine
  • Corrosion and wear in vacuum pumps
  • Coating Services
  • What is Fluoropolymer
  • Why Us
  • Videos
Services We Provide
Functions Achieved by Fluoropolymer Coating
Solutions

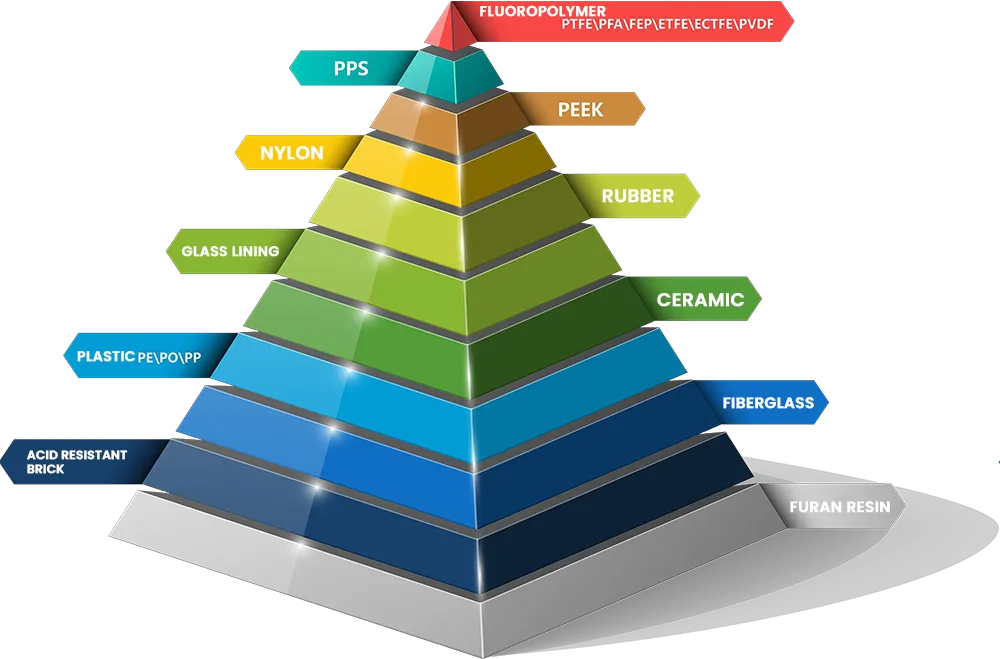

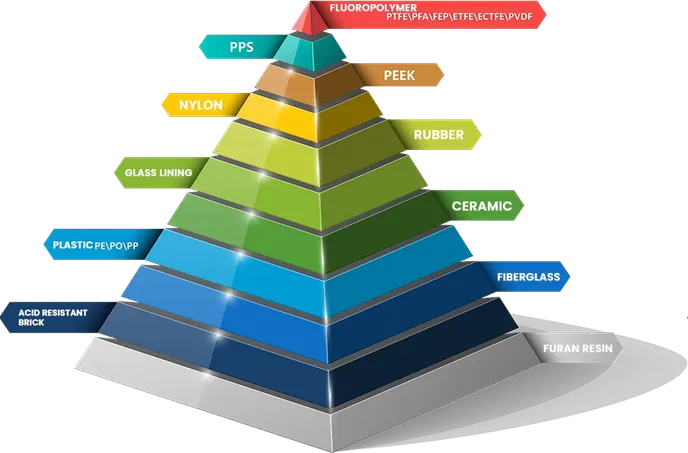

What is Fluoropolymer?
What is Fluoropolymer?

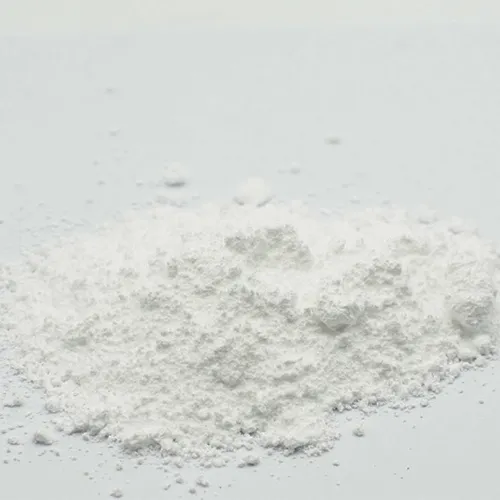

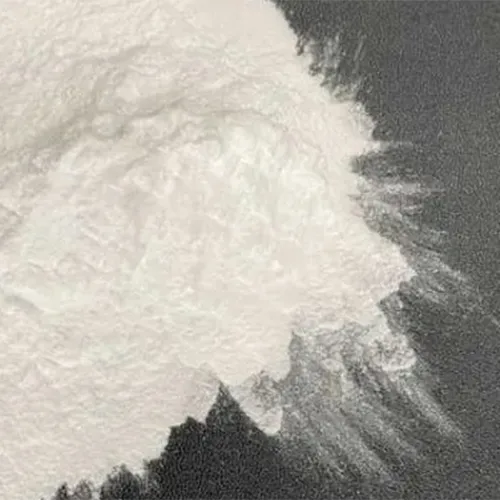

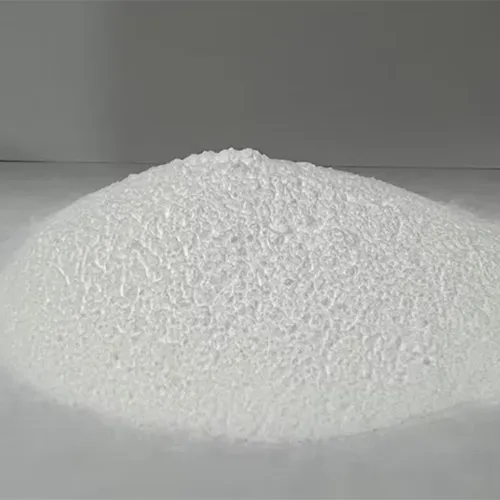

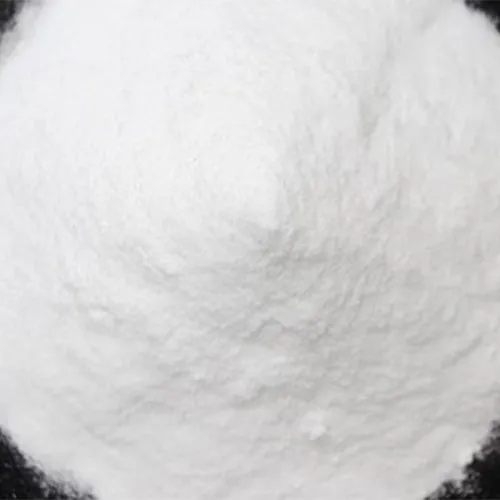

Options of Fluoropolymer
  • Our Partners
  • Our Partners
  • Our Partners
  • Our Partners
  • Our Partners
  • Our Partners
  • Our Partners

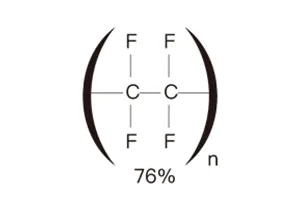

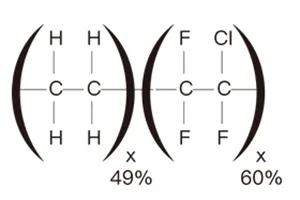

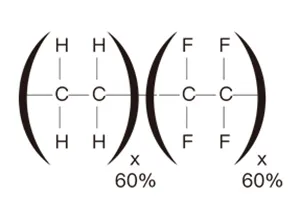

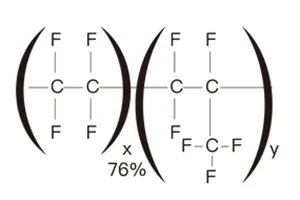

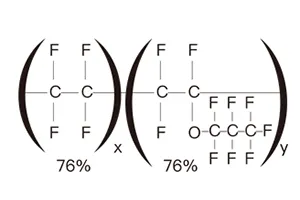

Molecular Structure Oil content of fluorine in 1 molecule     Materials Materials Materials Materials Materials
  Properties ASTM Standard Unit PTFE (F4) FEP (F46) PFA ETFE (F40) ECTFE (F30,Halar)
Polytetrafluroethylene Commonly known as:F4 Tetrafluoroethylene-hexafluoropropylene copolymer
Commonly known as:F46		 Tetrafluoroethylene–perfluoroalkyl vinylether copolymer Commonly known as:soluble PTFE Ethylene-tetrafluoroethylene copolymer Commonly known as:F40 Ethylene-chlorotrifluoroethylene copolymer
Commonly known as:F30 Halar
Mechanical Specific Gravity D792   2.15 2.15 2.15 1.76 1.67-1.69
Hardness D2240 R 50-60 56 60 72 72
Friction Coefficient D1894 Static 0.12-0.15 0.12-0.20 0.2 0.24-0.50 0.25
Dynamic 0.05-0.10 0.08-0.30 0.10-0.30 0.30-0.40 0.19
Tensile Strength D4457
D1708
D638		 MPa 21-35 23 25 40-47 50
Elongation D4457
D1708
D638		 % 300-500 325 300 150-300 250-290
Bending Coefficient D790 psi 72000 85000 85000 170000 170000
Impact Strength D256 J/M 189 No break
Water Contact Angle   degree 104-111 95-105 104-111 90-100 95-100
Thermal Melting Point D3418 ℃ 327 260 305 267 232-240
Temperature Resistance   ℃ -190～260 -100～200 -190～260 -60～150 -60～150
Sintering Temperature   ℃ 380-430 360-390 380-400 300-325 250-270
Continuous Use Temperature   ℃ 290 205 260 150 150
Intermittent Use Temperature   ℃ 315 230 290 200 200
Flammability UL94   V-0 V-0 V-0 V-0 V-0
Limiting Oxygen Index D2863 % >95 >95 >95 30-36 52
Calorific Value D240 MJ/kg 5.1 5.1 5.3 13.7 13.7
Thermal Conductivity   W/mk 0.25 0.2 0.19 0.24 0.14
Chemical/Solvent Resistance D534   Excellent
Water Absorption,24 hrs D570 % <0.01 <0.01 <0.03 <0.03 <0.03
Salt Spray Resistance (on aluminum) B-117 hour 744+ 744+ 1000 1000+ 1000+
Weather Resistance Climate in Florida year 20 20 10 15 15
Insulation Constant D150 1MHz 2.1 2.1 2.1 2.6 2.6
Electrical Dielectric Strength D149 V/um 18 53 80 79 79
Dielectric Coefficient D150 1MHz <0.0001 0.0006 0.0001 0.007 0.007
Arc Resistance D495 SEC >300 >300 >180 122 125
Volume Resistivity D257 Q.cm >10¹⁸ >10¹⁸ >10¹⁸ >10¹⁷ >10¹⁴
Surface Resistivity D257 Ω/sq. >10¹⁸ >10¹⁴ >10¹⁷ >10¹⁵ >10¹⁴
Properties of Fluoropolymer
  • Thermal stability
  • Non-sticking
  • Low friction
  • Chemical resistance
  • Aging resistance
  • High purity and cleanliness
  • Non-toxic
  • Electrical insulation
  • High and low temperature resistance
  • Non-invasive
  • USFDA compliance
  • Abrasion resistance
Coating & Lining Types
Corrosion Protection Grade Process Selection Corrosion Protection Thickness Typical Color Raw Material Brand Purity Grade
Fluoropolymer Coating for Industrial Applications PTFE (F4) coating 10μm-70μm Green/Grey/Black/Brown… Chemours/DuPont (USA) Daikin (Japan) Solvay (USA) G1-G2
G1-G3
PFA coating 10μm-2000μm Red/Black/White/Grey…
FEP (F46) coating 10μm-1500μm White/Black/Green… G1-G2
ECTFE (F30,Halar) coating 0.2mm-1.5mm White/Black/Green… G1-G3
ETFE (F40) coating 0.2mm-1.5mm Blue/Grey/White/Green… G1-G3
PVDF coating 0.2mm-1.5mm Beige/Black… G1-G3
PFA anti-static coating 10μm-2000μm Red/Black/White/Grey… G1-G3
ETFE (F40) anti-static coating 0.2mm-1.5mm Blue/Grey/White/Green… G1-G3
PTFE (F4) anti-static coating 10μm-70μm Green/Grey/Black/Brown… G1-G2
Fluoropolymer Coating for Semiconductor Manufacturing PFA high purity coating 10μm-2000μm Black/Beige/Transparent… / 0.5~1ppb
ECTFE (F30,Halar) high purity coating 0.2mm-1.5mm Black/Green… Solvay (USA)
PVDF coating 0.2mm-1.5mm Black/Beige/Transparent… Arkema (France)
PFA high purity anti-static coating 10μm-2000μm Black/Beige/Transparent… /
Fluoropolymer Lining for Industrial Applications PTFE (F4) lining 2mm-5mm White Chemours/DuPont (USA) Daikin (Japan) Dongyue Group (Shandong,China) G1-G3
PFA lining 1.5mm-4mm Transparent Chemours/DuPont (USA) Daikin (Japan) Yonghe (Zhejiang,China)
ECTFE (F30,Halar) lining 2mm-4mm Transparent Solvay (USA)
PVDF lining 2mm-4mm Transparent Arkema (France)
Fluoropolymer Lining for Semiconductor Manufacturing PTFE (F4) lining 2mm-5mm White Chemours/DuPont (USA) Daikin (Japan) G3-G5
PFA lining 1.5mm-4mm Transparent
N-PTFE (modified PTFE) lining 2mm-4mm White
What Makes Us Unique

At ChiNaite, every detail in our coating process is designed to ensure quality, consistency, and compatibility with demanding applications.

  • Precision-Controlled Curing
    We use hot air circulation ovens imported from Japan to ensure uniform temperature control during curing. With a maximum capacity of 5 meters in diameter and 10 meters in length, our largest oven is one of the biggest used for fluoropolymer coating in China. To handle a variety of equipment sizes, we operate a total of 25 ovens in different specifications.
  • Certified Raw Materials
    All coating materials are imported and approved by Chemours (DuPont, USA), Daikin (Japan), and Solvay (USA), ensuring consistent performance and material traceability.
  • Dedicated Sandblasting Areas
    To prevent cross-contamination, stainless steel and carbon steel vessels are handled in separate sandblasting rooms, three for each material type, enabling strict quality control at every stage.
  • Electr ostatic Powder Coating Range
    We offer five fluoropolymer options for electrostatic powder coating: PTFE (F4), PFA, FEP (F46), ETFE (F40), ECTFE (Halar, F30), and PVDF.
  • Fluoropolymer Emulsion Coating Options
    Our emulsion-based coating services include PTFE, PFA, and FEP (F46) to meet different performance and process requirements.
Why Us
Videos

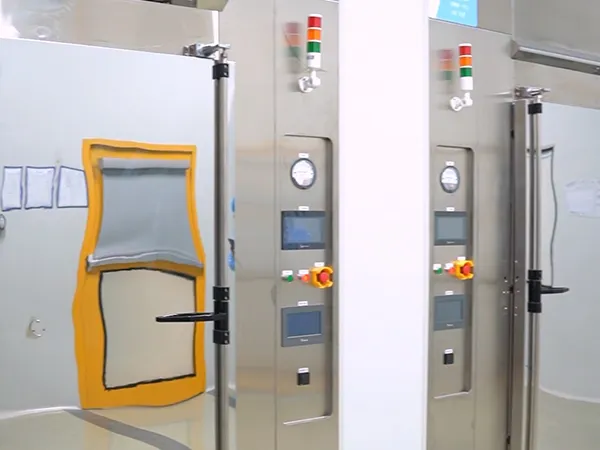

High-Purity PFA Coating Workshop (Class 1000)
High-Purity PFA Coating Workshop (Class 1000)

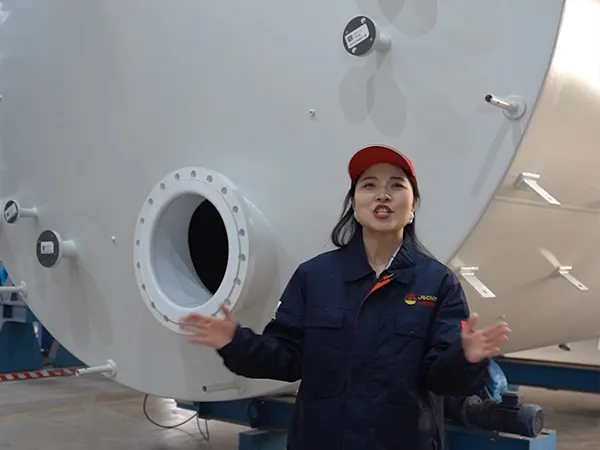

PTFE Lined Acid Storage Tank (4mm Thick Lining)
PTFE Lined Acid Storage Tank (4mm Thick Lining)

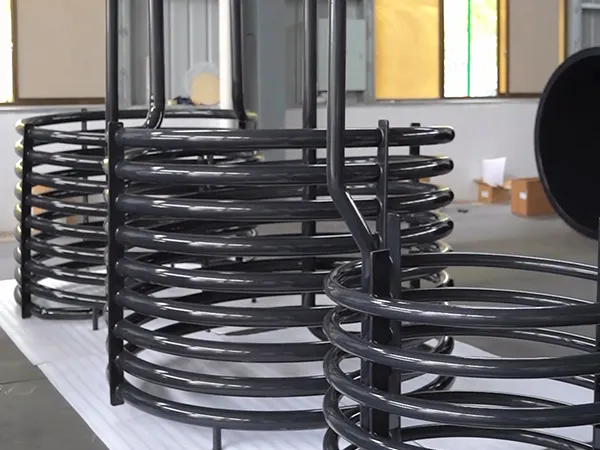

Internal Coils in Reactor
Internal Coils in Reactor
Ribbon Blender with Lifting Mechanism
Ribbon Blender with Lifting Mechanism
Looking for high-performance coating or lining solutions?

Whether it’s fluoropolymer coating for corrosion protection or high-purity linings for critical equipment, we’re here to help you find the right solution.
