High-purity fluoropolymer coatings for –190°C to 260°C environments, using DuPont, Daikin, and Solvay materials for industrial applications and semiconductor manufacturing.
Fluoropolymer Coating for Semiconductor Manufacturing
PFA high purity coating, ECTFE (F30, Halar) high purity coating, PVDF coating, PFA high purity anti-static coating, high purity of 0.5-1 ppb
What Makes Us Unique
At ChiNaite, every detail in our coating process is designed to ensure quality, consistency, and compatibility with demanding applications.
Precision-Controlled Curing
We use hot air circulation ovens imported from Japan to ensure uniform temperature control during curing. With a maximum capacity of 5 meters in diameter and 10 meters in length, our largest oven is one of the biggest used for fluoropolymer coating in China. To handle a variety of equipment sizes, we operate a total of 25 ovens in different specifications.
Certified Raw Materials
All coating materials are imported and approved by Chemours (DuPont, USA), Daikin (Japan), and Solvay (USA), ensuring consistent performance and material traceability.

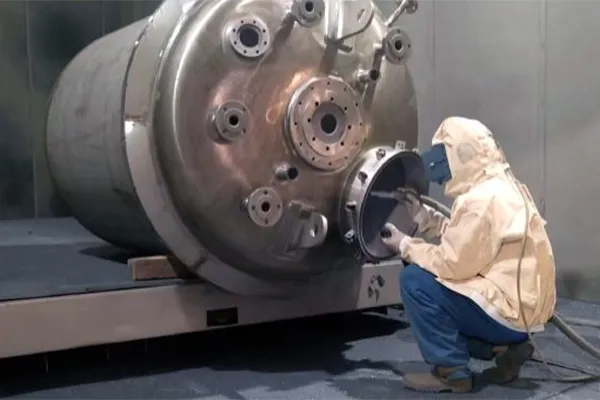

Dedicated Sandblasting Areas
To prevent cross-contamination, stainless steel and carbon steel vessels are handled in separate sandblasting rooms, three for each material type, enabling strict quality control at every stage.

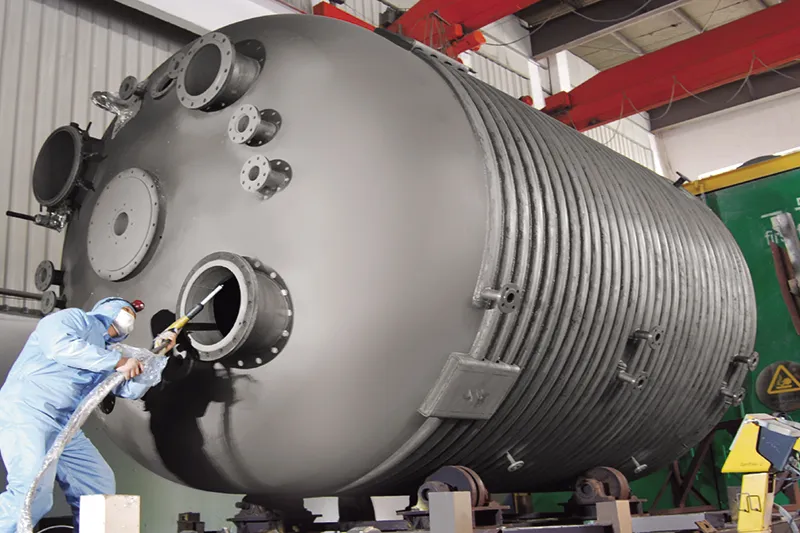

Electrostatic Powder Coating Range
We offer five fluoropolymer options for electrostatic powder coating: PTFE (F4), PFA, FEP (F46), ETFE (F40), ECTFE (Halar, F30), and PVDF.
Fluoropolymer Emulsion Coating Options
Our emulsion-based coating services include PTFE, PFA, and FEP (F46) to meet different performance and process requirements.

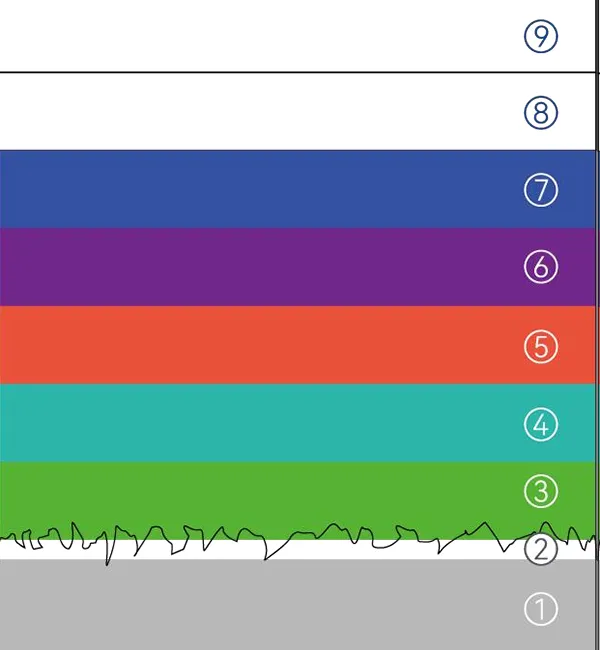

The number of coating layers applied depends on the required thickness.
9. Sixth Topcoat Layer (cured at high temperature)
8. Fifth Topcoat Layer (cured at high temperature)
7. Fourth Topcoat Layer (cured at high temperature)
6. Third Topcoat Layer (cured at high temperature)
5. Second Topcoat Layer (cured at high temperature)
4. First Topcoat Layer (cured at high temperature)
3. Primer Layer (base coat applied and oven cured)
2. Surface Preparation (sandblasting)
1. Steel Substrate
Selection Guide of Fluoropolymer Coating
Corrosion Protection Grade
Process Selection
Corrosion Protection Thickness
Typical Color
Raw Material Brand
Purity Grade
Fluoropolymer Coating for Industrial Applications
PTFE (F4) coating
10μm-70μm
Green/Grey/Black/Brown…
Chemours/DuPont (USA) Daikin (Japan) Solvay (USA)
G1-G2 G1-G3
PFA coating
10μm-2000μm
Red/Black/White/Grey…
FEP (F46) coating
10μm-1500μm
White/Black/Green…
G1-G2
ECTFE (30,Halar) coating
0.2mm-1.5mm
White/Black/Green…
G1-G3
ETFE (F40) coating
0.2mm-1.5mm
Blue/Grey/White/Green…
G1-G3
PVDF coating
0.2mm-1.5mm
Beige/Black…
G1-G3
PFA anti-static coating
10μm-2000μm
Red/Black/White/Grey…
G1-G3
ETFE (F40) anti-static coating
0.2mm-1.5mm
Blue/Grey/White/Green…
G1-G3
PTFE (F4) anti-static coating
10μm-70μm
Green/Grey/Black/Brown…
G1-G2
Fluoropolymer Coating for Semiconductor Manufacturing
